Administration Concepts

S-Filer Portal administration is based on 2 levels of administration.

Master Administrator: Only the master administrator can create groups and communities.

S-Filer Portal users use S-Filer Portal to transfer files interactively. Users belong permanently to one or more groups. These groups can be based on the more permanent administrative divisions of a company such as Finance, Human Resources, and so on. Users can also be members of communities. These communities can be based on commercial or business requirements such as individual projects or comities.

S-Filer Portal users can be given administrative privileges:

Group administrators: As a group administrator, a user can manage the group membership as wells as options and permissions assigned to the group.

Community administrators: As a community administrator one can appoint users from different groups to be members in their community. A user can belong to zero, one or more communities. One or more community administrators manage the community.

This Manual

This Manual only covers the administrative functions that are only available to the Master Administrator. All administrative functions that can be performed by Users with administrative rights are covered in the User Manual.

Starting in administrator mode

This section describes how to get into S-Filer Portal in administrative mode in order to create, and administer Users, User Groups and Communities.

The following sections describe the functions available to the general user:

First Logon
Understanding the Home Page
Administering your account
Logout

First Logon

The first time you logon after installing S-Filer Portal, only one user account is available for use. This is the Super user account. The default id is sfiler-master and the default password is sfiler.

Note: Although we recommend you create another master admin account with a different ID and a strong password, if you would rather keep this ID, you must change the password.

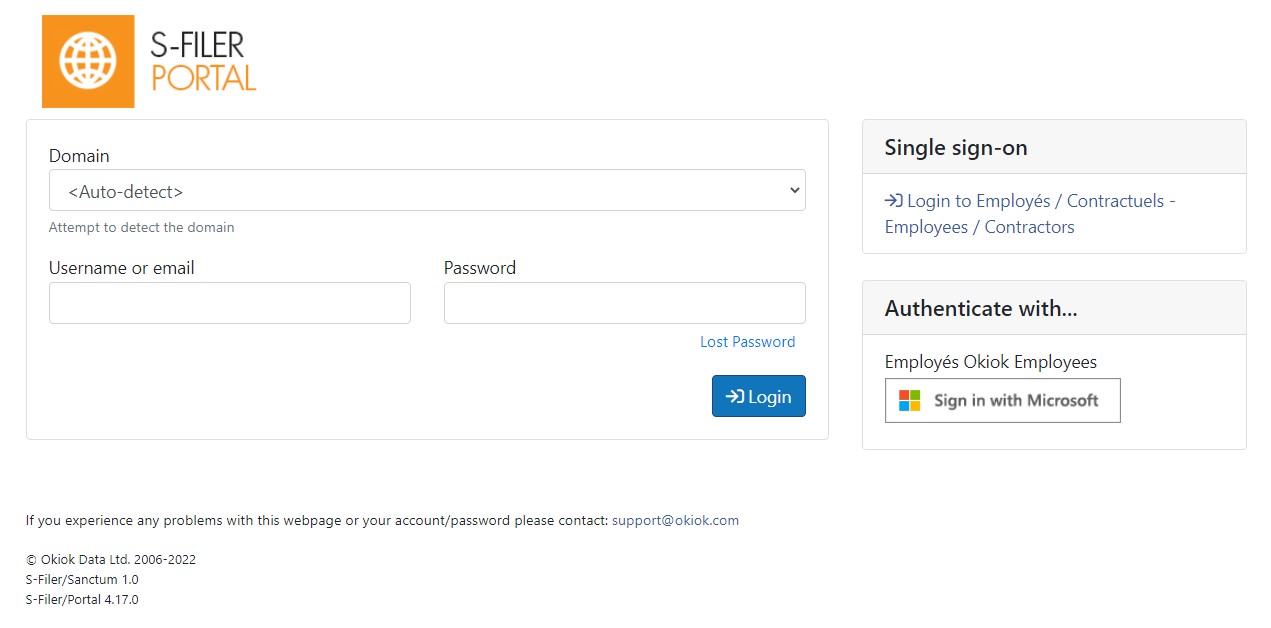

Logging On

To log on to S-Filer Portal, go to the S-Filer Portal web address (ex: https://www.okiok.com/sfiler) supplied by the system administrator responsible for the installation and configuration. A login page similar to the following will appear:

Logon as the master administrator using the id and password supplied. Select the domain that was created as part of the server creation process in the configuration interface. As a master administrator you will not be able to transfer files. S-Filer offers 3 different authentication processes. Other domains are not available yet. You will have to configure S-Filer Portal for users to have access.

Understanding the Home Page

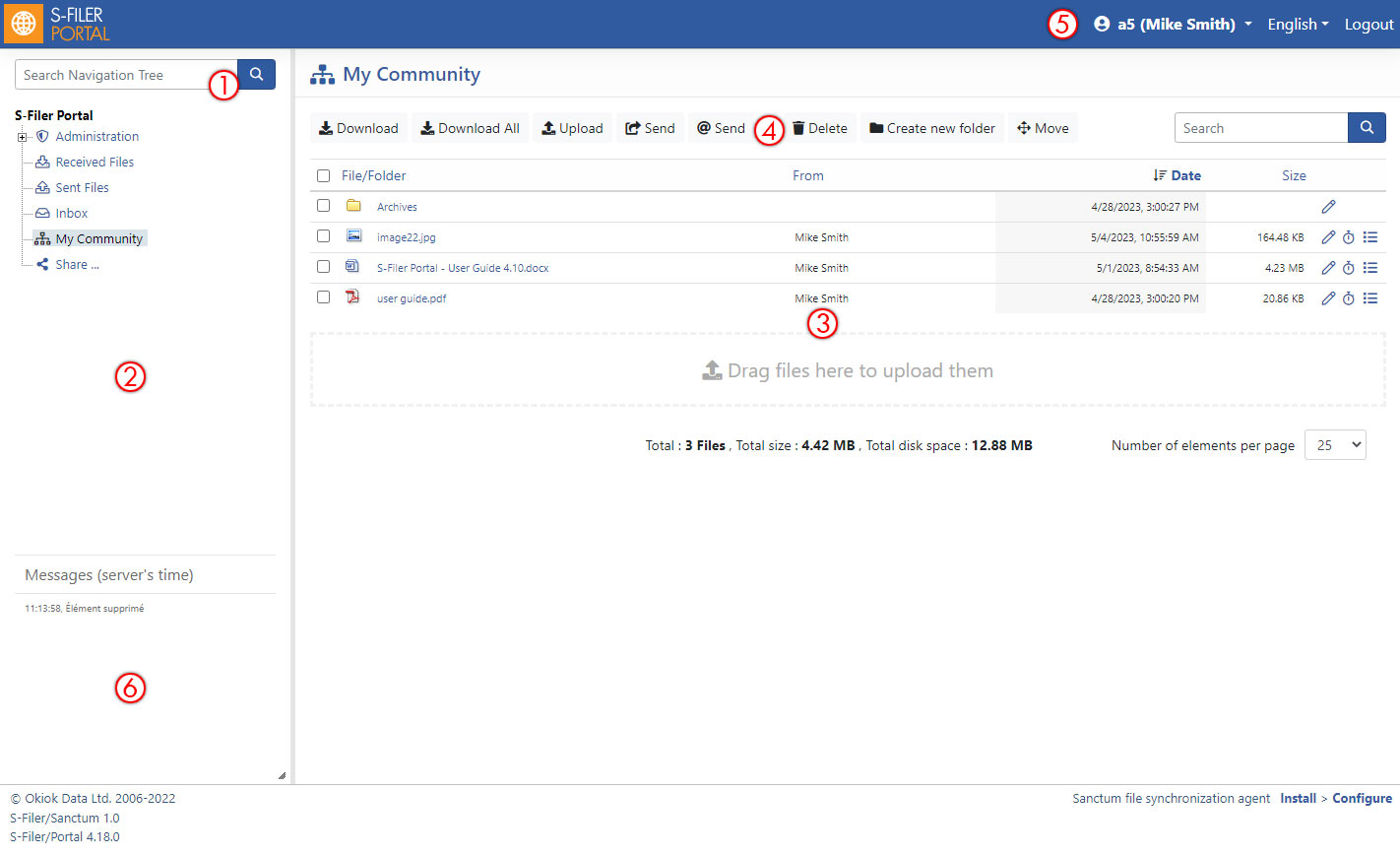

After you have logged in to S-Filer Portal, you will see a home page that looks like this:

This page has seven sections, shown above in red.

Section 1: This section lets you search for a community name, this is helpful when you have many communities or your community is not displayed on the home page.
Section 2: Displays the Received Files and Sent Files, Displays the inbox, communities and Shares containing shared files and folders.
Received Files and Sent Files contains the files you sent and files you received. Inbox contains your own files, communities contain files for each of the communities to which you belong followed by Shares. Click on any of these containers to see details.
Section 3 This section shows the various files and folders available to you. Click on a file to download it to your computer (providing you have the necessary rights). Click Delete to erase any files or folders that you no longer wish to store in S-Filer Portal. Use the Search button (the button with the magnifying glass) to filter the file list according to the contents of the adjacent text box. The filter is applied to the texts in the from column and the File column.
Section 4: Click the button in this section to upload files to the S-Filer Portal server, send files to users that are not part of an S-Filer community. You can also add new folders and move folders and files from this bar.
Section 5: To view and update your S-Filer Portal account (i.e., your user profile), click My Profile. To generate activity reports as CSV files or PDF files, click Reports. Your Administrator may restrict your profile to simply view it and not be able to modify it.
Section 6: This section lists the last few operations successfully completed. This section starts clean on every new session.

Administering your account

If this is your first logon, you should configure your account and make sure you include a valid email address to receive your temporary password in case you forget you administrator password.

Click My Profile to view and update your account details.

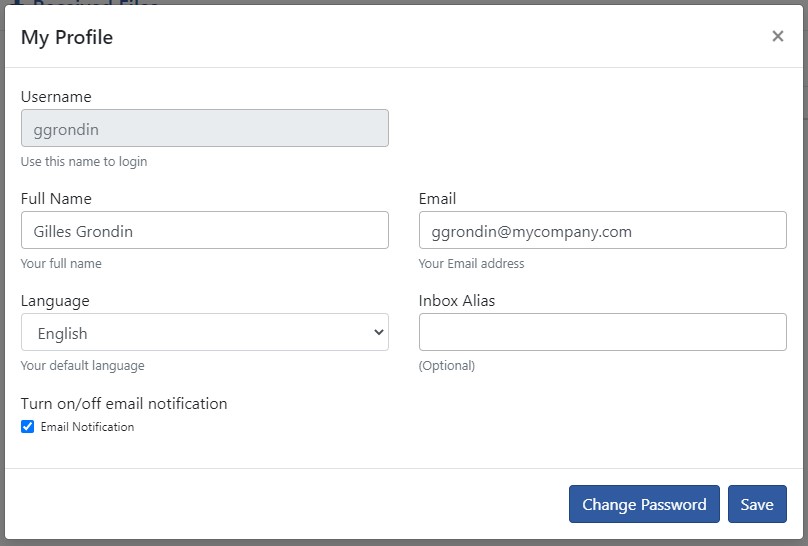

Updating your account details

To view and optionally update your user profile, click My Profile. The My Profile dialog box will open:

Here are the fields that you can change:

Full Name: Normally, this is your "real" given name and family name. It will appear with your Login Name (i.e., the username you provide when you logon to S-Filer Portal) in the group lists and community lists.
Email: The e-mail address that S-Filer Portal uses to send you a notice each time that you or someone in your community uploads, downloads, or deletes a file (providing that you have selected Email Notification, below). This is also the email S-Filer Portal will use to send you a new temporary password should you have forgotten your password.
Email Notification: Select whether or not you wish to receive e-mail notifications.
Language: Select the language to be used by S-Filer Portal.
Inbox Alias: The label used to identify your Inbox. If you leave this field empty, the label Inbox will be used.

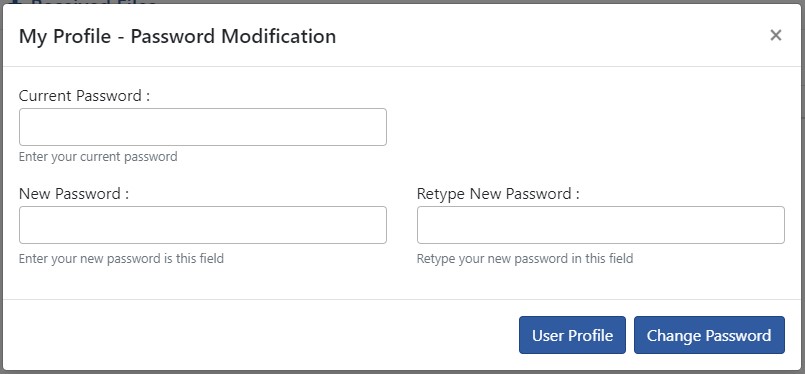

Changing your password

Your My Profile page has a Change Password link (unless your account is from an external user domain such as AD). Click the link to see the following:

Current Password: In this field, enter your current S-Filer Portal password.
New Password: Enter a new password.
Retype New Password: Enter the same password that you entered in the New Password field.

Once you have changed your password, you cannot reuse the old password for a period of time. S-Filer Portal keeps a record of the passwords that you have used.

Logout

You can end your session with S-Filer Portal by clicking Logout, which appears at the top right of each page:

To protect your files, we suggest that you logout from S-Filer Portal whenever you leave your computer. If you do not use S-Filer Portal for a period of time (determined by an administrator), you will be logged off automatically.

Note: It is important that you DON'T close the windows by using the "X" button before logging out because any actions done during the session will be forgotten.

S-Filer Portal objects

S-Filer Portal is based on five major objects. The basic object is users. Users can be part of User Groups. Users can also be part of communities. This section gives you a brief overview of the different parameters associated to these objects.

The following section covers following concepts:

Users
User groups
Communities
Shares
Extensions

Users

S-Filer Portal is a complete, robust, Enterprise File Synchronization and Sharing (EFSS) and Managed File Transfer (MFT) solution designed to facilitate and secure all your information movement requirements including automated system to system file transfers, community based collaboration and person to person document sharing through synchronized folders. There are basically 2 types of users:

Master administrators: The Master administrator is an administrator who can manage all groups and all communities. Unlike users with administrative privileges, the master administrator's account cannot be used to transfer files.
Users: Users use S-Filer Portal to transfer files interactively. These users belong permanently to one or more groups. These groups can be based on the more permanent administrative divisions of a company such as Finance, Human Resources, and so on.

User Privileges

S-Filer Portal users can be assigned administrative privileges:
Group administrators: One or more group administrators manage each group.
Community administrators: An administrator for each community can appoint users from these groups to membership in their community. A user can belong to zero, one or more communities. One or more community administrators manage the community.

User authentication:

User can authenticate in three different ways:

Natively: These users are created and exist only in the native S-Filer Portal database. They are not part or linked to the enterprise Directory. Master Administrators are native users. You would also create Native users for Business partners and other external users who are not part of the Enterprise Directory. These users are managed entirely from S-Filer Portal, including password reset.
AD Users: These Users were adopted from the Enterprise Active Directory. They will authenticate to S-Filer Portal from Active Directory using their corporate ID. You cannot manage forgotten password from S-Filer Portal for these users.
SSO: If configured, this option will permit users to authenticate automatically.

User groups

A user group is a set of users (i.e., people who will use S-Filer Portal). The group grants its members certain rights with regard to S-Filer Portal. You can configure four rights for each group:

Uploads permitted: This right, if enabled for a group, allows any member of the group to upload files. Otherwise, uploads are not permitted.
Downloads permitted: This right, if enabled for a group, allows any member of the group to download files. Otherwise, downloads are not permitted.
Quick send Allowed: This right, if enabled for a group, allows any member of the group to upload a file to an email address. Note: if the S-Filer Portal administrator has deactivated uploading to email addresses then enabling this right for a group has no effect.
Quick send Password Policy: At the group level you can assign a Quick Send Password Policy for that group. By enabling this feature all members of the group will need to include a password when using Quick Send.
Theme: At the group level, you can assign a theme. If no theme is specified the default theme will be used. If you specify a theme, it will be used at the login screen and emails URL will include the theme as well.
IPs Allowed: In this option, you can specify a list of IP addresses. Each address must be in nnn.nnn.nnn.nnn format. Only users whose IP addresses appear in this list can interact with S-Filer Portal. You can also use a mask to specify a range of IP addresses. For example, a mask of 192.*.*.* allows any user whose IP address begins with 192 to access S-Filer Portal. Users whose IP addresses are not specified in the list cannot interact with S-Filer Portal.
Password Policy: At the group level you can assign a Password Policy for that group. If no specific group password policy is assigned the System Default Password Policy is used.

A user (or more precisely, a user account) can belong to one group, several groups, or no group at all. If a user is not a member of any group, he or she cannot upload or download files. If a user is a member of one group, he has all the rights that were granted to the group. If a user is a member of two or more groups, his rights may be inclusive or exclusive, depending on the configuration of S-Filer Portal. For example, if a user is a member of one group that permits receiving files and another group that does not, then the user may not be able to receive files. To change the configuration, contact the S-Filer Portal Administrator or Integrator.

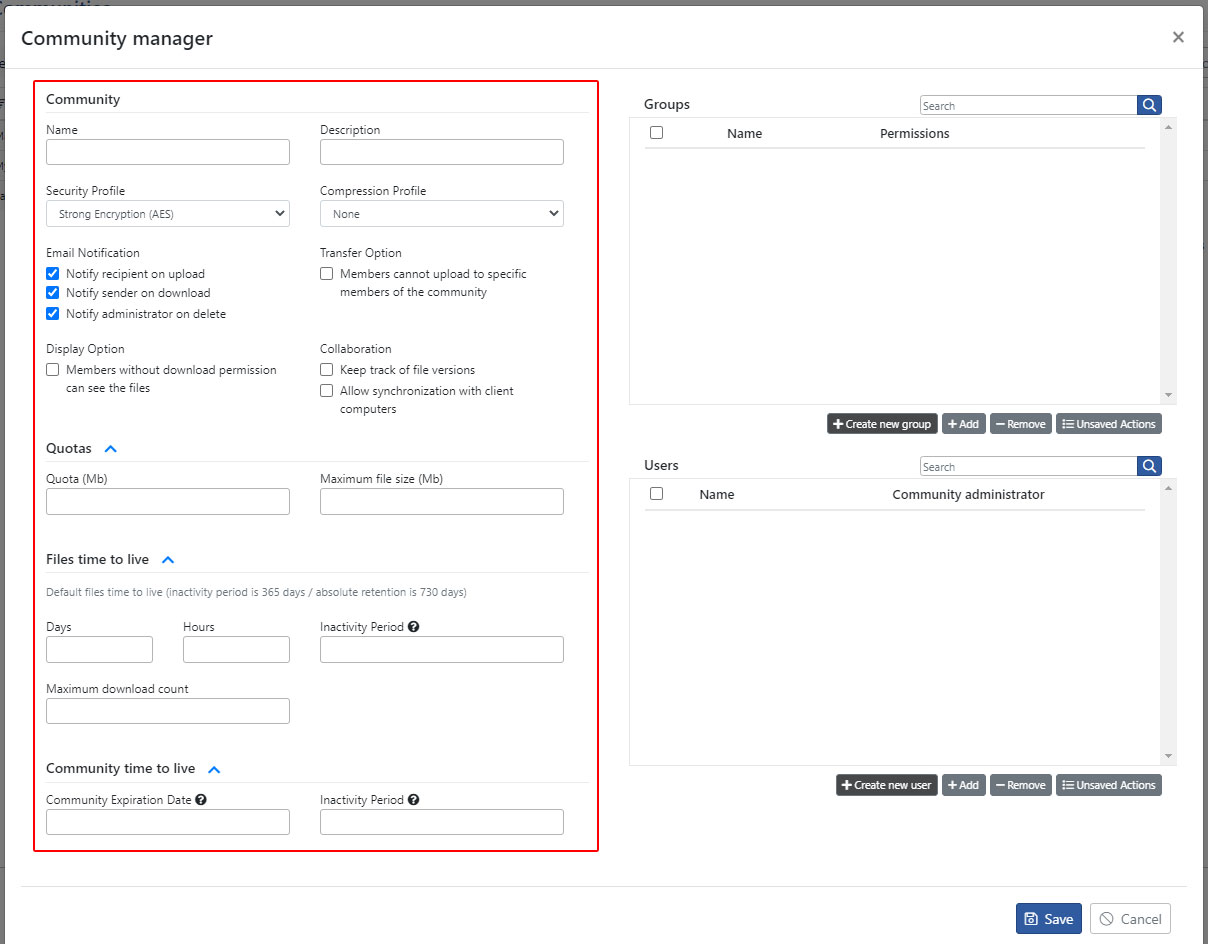

Communities

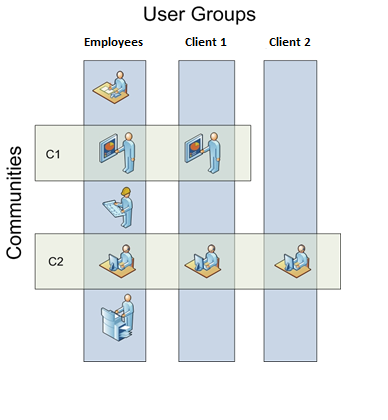

A community is a group of users who can exchange documents with each other. When you create a community, you assign one or more user groups to it. The members of these groups are then potential members of the community, but they do not automatically become members. After you create a community, you can select the members of the community from the users who are potential members.

Security Profile: This option is used to select the Encryption algorithm and strength enforced for this community.
Compression: This option is used to select whether to compress or not before sending.
Transfer protocol: This option is used to select the default transfer protocol to be used by this community.
Notification: This option determines whether user should get notified by email when a file is uploaded to the community.
Display: This option determines whether user without download rights can still view filenames available.
Default time to live: This option block is used to set default time to live properties that will affect transfers done to this community.
Collaboration: This option if checked will keep different version of a file. To always replace the file, leave this option box unchecked. The Allow synchronization with client computers option, if enabled will permit files from this community to be synchronized on member's computers using the Sanctum client.
Quotas: The Quota field will restrict the total amount of megabytes allowed for the community.
Maximum file size: Will restrict the size in megabytes that a user is allowed to upload the community. If the quota is attained the user will receive an email informing them that they have exceeded the quota for the community.
Time to Live: The default time to live for a community can be set by number of days, number of hours or number of downloads before the file is deleted.

A Share is similar to a community. A share can be created and administered by a user where as a community must be created by the Super-administrator. Once created, a community can be administered by an admin user.

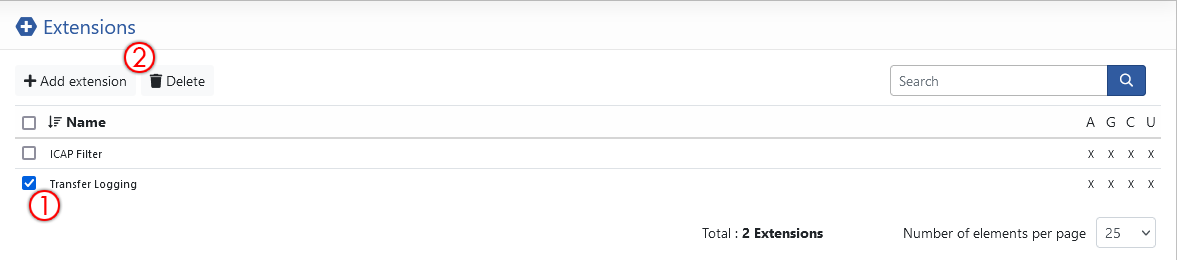

Extensions

Extensions are modules programmed in Java by yourself or a third party who may be attached to certain events in the application. When these events occur, the code will be executed. The list of events depends on whether you place your extension on the entire application on a user group on a community or a particular user.

Extensions are optional. The S-Filer Portal Integrator must enable this option in order to see this objects.

Administering Users

The following sections introduce the following:

View existing users
Create Users
Modify Users
Manage extensions for a user
Delete Users

View existing users

As a master administrator you can manage all S-Filer Portal users. There are two types of users. Regular users who can transfer files and Master Administrators who can manage S-Filer objects, but cannot transfer files.

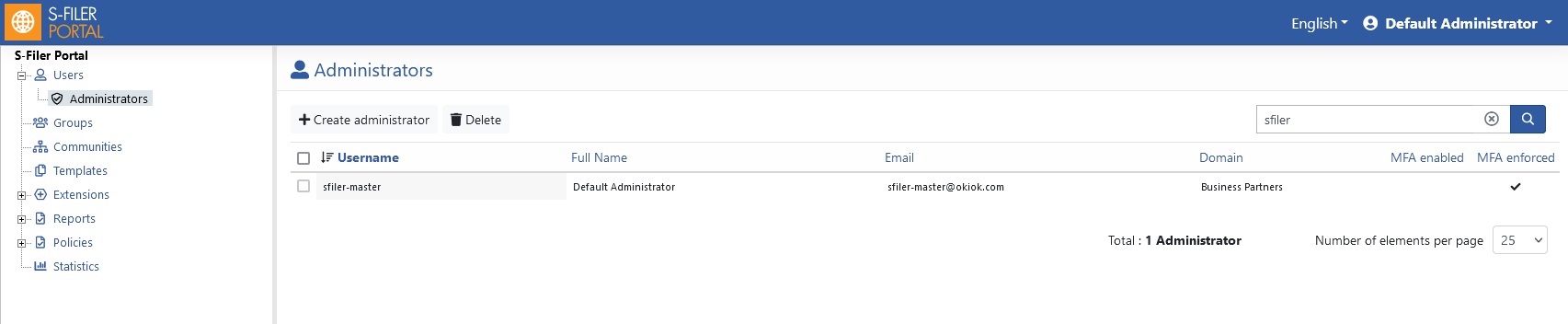

Figure 6 -- User and Administrator List

Click on the User or Administrator links and you will be presented with the list of all corresponding profiles.

Notice that each line contains the authentication type, that is Internal (Native to S-Filer) or AD.

Note: If the SSO option is activated, one might need to configure the browser using the administrative console.

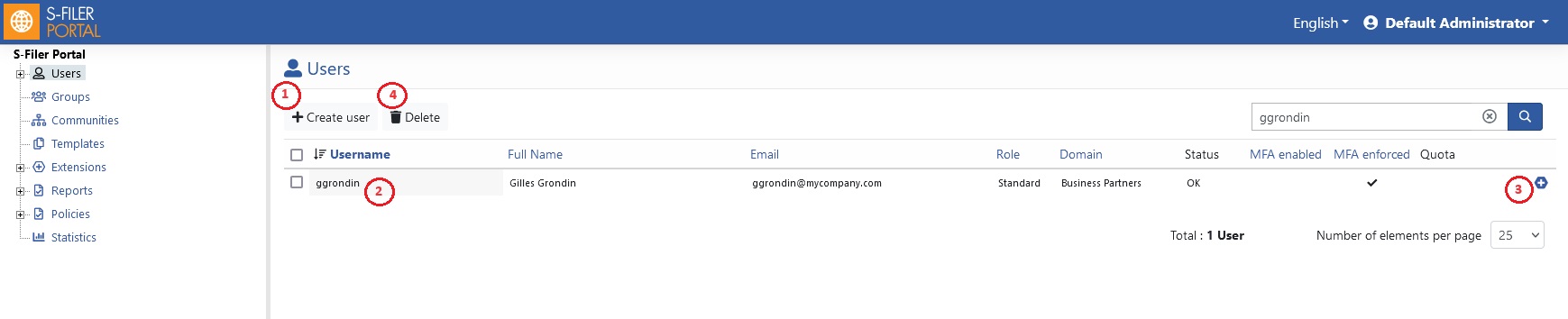

Figure 7 -- User Management

Four options are available from this panel:

Create a native user.
Update an existing user.
Manage user extensions
Delete a user

Create Users

Selecting «Add», the following screen will be displayed:

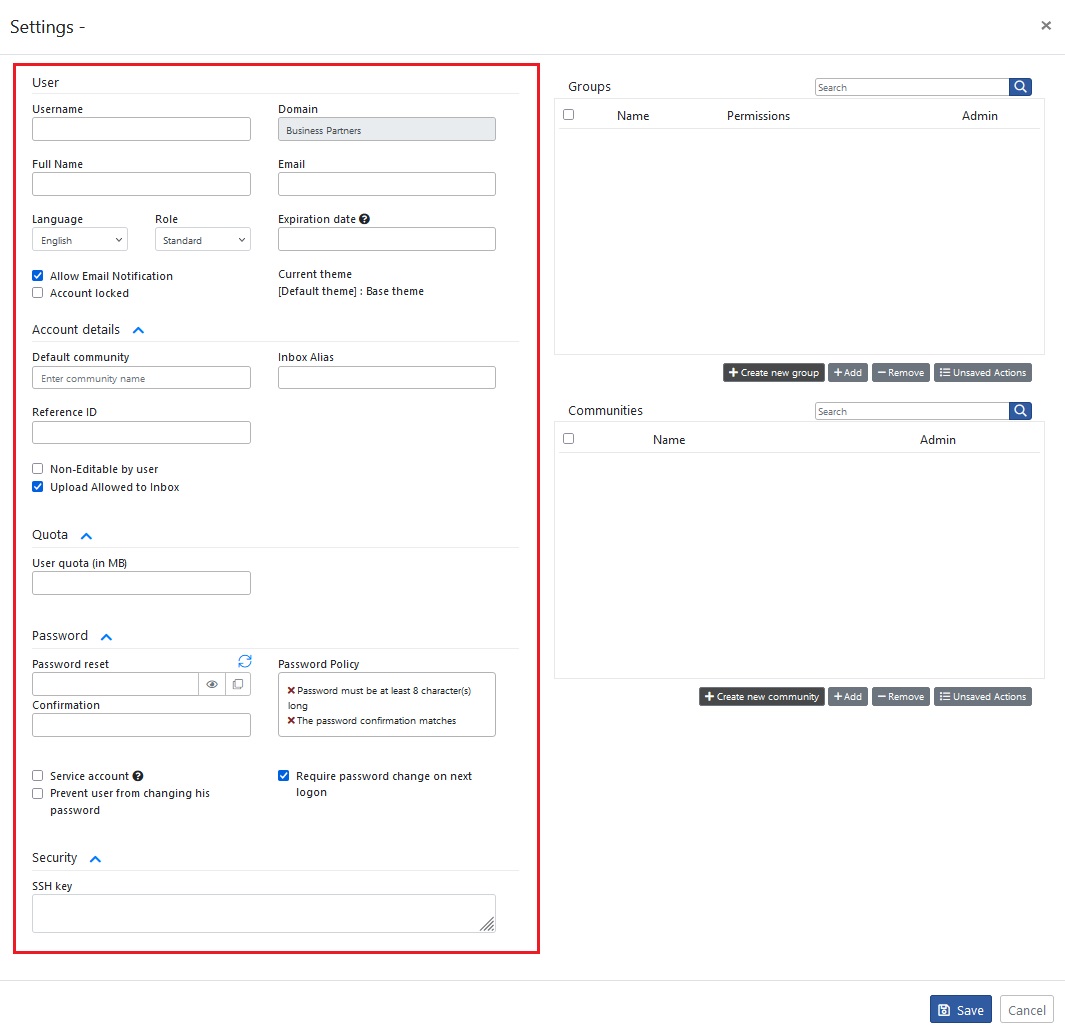

Figure 8 -- Create User

Fill out all required fields.

Username: The username used to login the user.
Full Name: The user's "real" full name.
Email: The user's email address. S-Filer Portal will send the user's password to this address.
Language: Select the language that the user prefers.
Role: as a group administrator you cannot change the user's role.
Expiration date: you can set the expiration for a user account. If left blank the software will add by default 60 days to the expiration date when the user first logs in.
Account locked: this box will be checked if the users tries to login and had more than 3 failed attempts (the default is 3 failed attempts but this can be changed by a system administrator). As a group Administrator you can check this box to prevent a user from logging in.
Current theme: It displays the current theme for the user and if no specific theme is used it will default to the Default theme.
Default community: You can set the community in which a user will point to when they login. If not set the focus will be on the user's Inbox.
Inbox Alias: Optionally, you can create an alias (e.g., "My Documents") for the user's personal Inbox. This alias will be used in place of "Inbox" on the user's home page.
Non-Editable by user: Enable or disable if a user can modify their profile. If unchecked the user can modify their profile. If checked the user will be able to see their profile but not modify it.
Upload permitted to inbox: This field can be used to limit the size of the inbox to prevent users from using S-Filer Portal to keep copies of personal items like photos...
Reference ID: a general field you can use, is not used during transfers.
User quota (in MB): This parameter is used to limit the size of shares created by this user.
Allow Email Notification: Enable or disable email notification for this user. Email notification can be used when a new file is uploaded to the user, for example.
Service account: This option is used for users performing automated tasks where we do not want to have to change password or provide multi-factor authentication (MFA) in a script. The S-Filer CLI (Command-Line-Interface) has a function that generates an encrypted password to use in a script.
Prevent user from changing password: if this option is enabled the user will not be able to modify their password.
Require password change on next logon: This option is on by default and will require that the user change their password on their first logon.
SSH key: When doing transfers in SFTP this will be the public key to be used for SSH authentication. When using the SSH key no password is required for authentication

Modify Users

Selecting a user will open a form very similar to the «Create user form» except it has one more field, «Locked account»

Again here, simply update the desired field.

Manage extensions for a user

Refer to the «Assign extension» section.

Delete Users

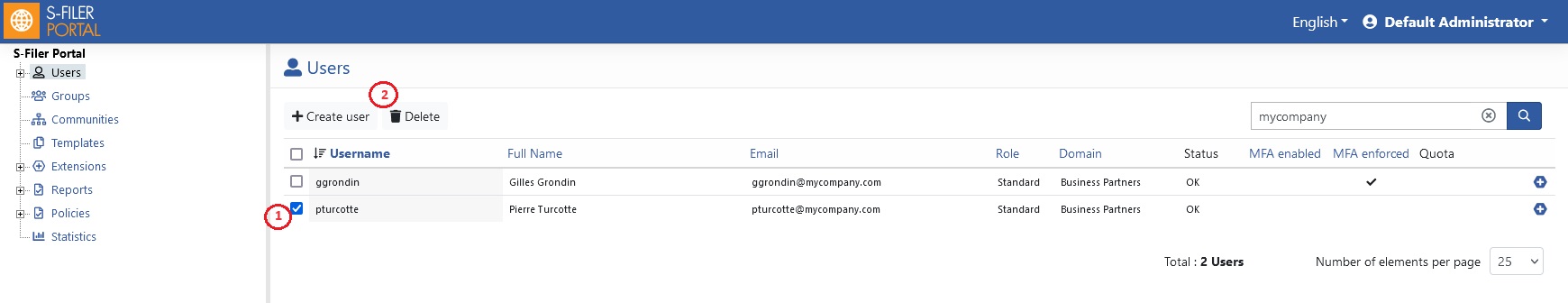

To delete one or more users, simply select the users (1) and click on the delete button (2).

Note: once deleted, all corresponding files will be deleted thus the user cannot be recovered.

Administering a User group

S-Filer Portal organizes enterprise users into user groups, which are usually based on functional teams. These groups use S-Filer Portal to gather and store files, which they can then make available to one or more communities.

The following sections introduce the different actions:

View existing User groups
Add a user group
Change the properties of a user group
Manage Group Members
Manage Extensions available to a group
Remove one or more groups

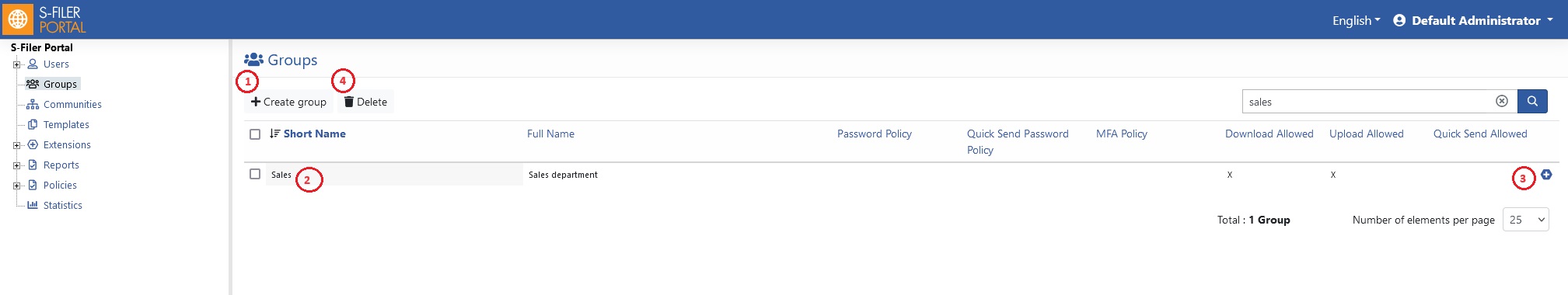

View existing User groups

You can be assigned administrative privileges in any user group to which you belong. You can be granted this right either by the S-Filer Portal administrator or by a delegated administrator of that group. If you are a user group administrator, your home page will display something like this:

As an administrator, there are four things that you can do:

Add a new user group
Modify an existing group
Manage Extensions available to a group.
Remove one or more groups

Add a user group

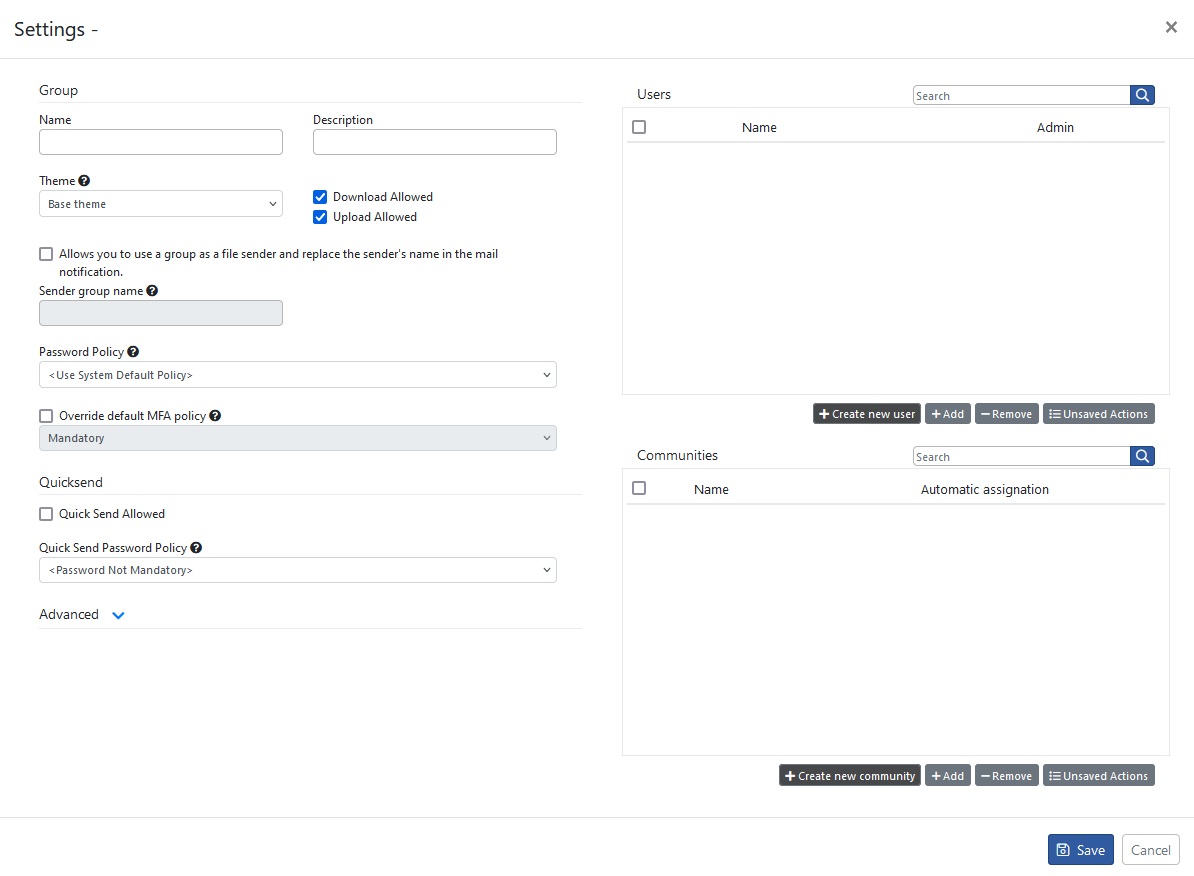

To add a new user group, click the + Create Group button.

Here are the fields that you can configure:

Name: Enter a name
Description: Text that describes the group.
Download Allowed: Grant or revoke the right of the group's members to download files.
Upload Allowed: Grant or revoke the right of the group's members to download files.
Theme: You can now associate a GUI theme to a group. This adds the possibility of changing the GUI Theme dynamically based on user settings. If you specify a theme, it will be used at the login screen and emails URL will include the theme as well.
Password Policy: At the group level you can assign a Password Policy for that group. If no specific group password policy is assigned the System Default Password Policy is used.
Quick Send Allowed: Grant or revoke the right of the group's members to upload files to an email address.
Quick Send Password Policy: At the group level you can assign a Password Policy to use with the Quick Send Allowed. This will make using a password mandatory, if no password policy is assigned you are able to use the Quick Send Allowed with out a password.
IPs Allowed: A list of IP address from which the group's members can connect to S-Filer Portal. If the list is empty, users can connect from any IP address. You can use an asterisk to specify a range of IP addresses. For example, enter 192.168.*.* to permit the group's members to connect from any IP address that begins with 192.168.

Change the properties of a user group

To see the properties of a user group, click on its name in the list of user groups. The User Group Details dialog box will open

You can change the following properties:

Description: Text that describes the group.
Download Allowed: Grant or revoke the right of the group's members to download files.
Upload Allowed: Grant or revoke the right of the group's members to download files.
Theme: You can now associate a GUI theme to a group. This adds the possibility of changing the GUI Theme dynamically based on user settings. If you specify a theme, it will be used at the login screen and emails URL will include the theme as well.
Password Policy: At the group level you can assign a Password Policy for that group. If no specific group password policy is assigned the System Default Password Policy is used.
Quick Send Allowed: Grant or revoke the right of the group's members to upload files to an email address.
Quick Send Password Policy: At the group level you can assign a Password Policy to use with the Quick Send Allowed. This will make using a password mandatory, if no password policy is assigned you are able to use the Quick Send Allowed with out a password.
IPs Allowed: A list of IP address from which the group's members can connect to S-Filer Portal. If the list is empty, users can connect from any IP address. You can use an asterisk to specify a range of IP addresses. For example, enter 192.168.*.* to permit the group's members to connect from any IP address that begins with 192.168.

Manage Group Members

As an administrator of a user group, you can add S-Filer Portal users to your group, and you can also remove them from your group.

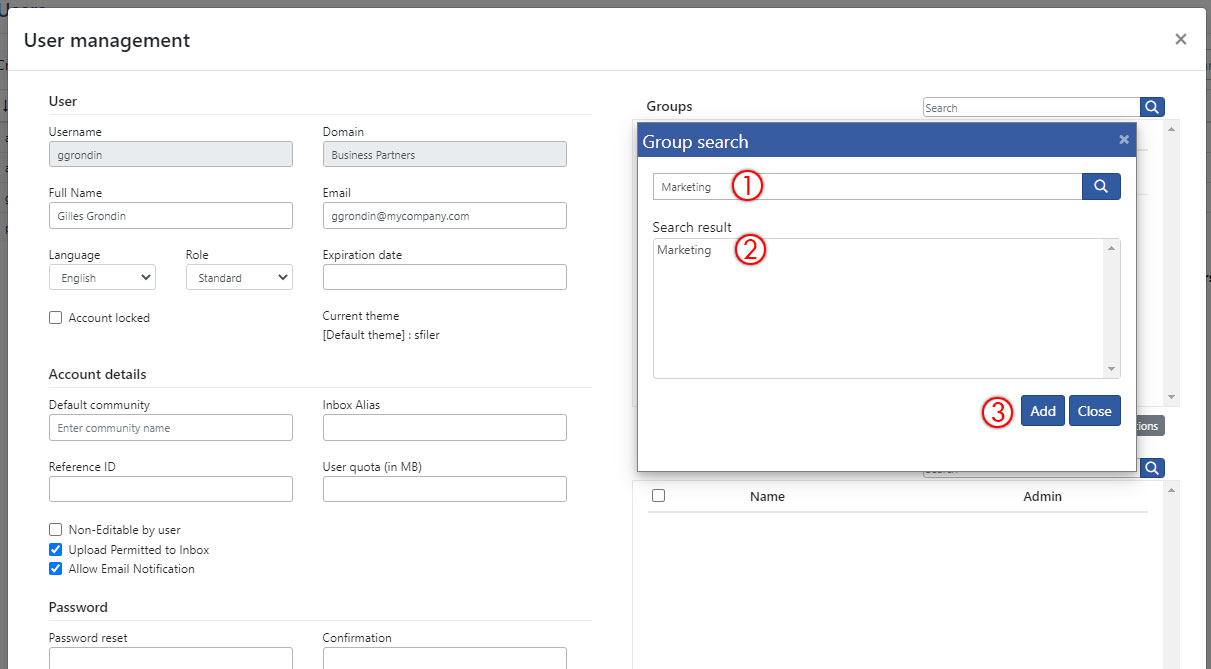

Use the + button to select to add a new user to add the group.

You can use the search group to select the group in our case Marketing.
In the search result we click on Marketing to select it
Click on + Add to add the user to the Marketing group.

Only a master administrator can delete a user from the application.

Important

If you remove users from a group, this can cause them to lose their membership in a community, and thereby lose access rights that they need for their work. Make sure you understand the consequences of removing a user from a group before you act.

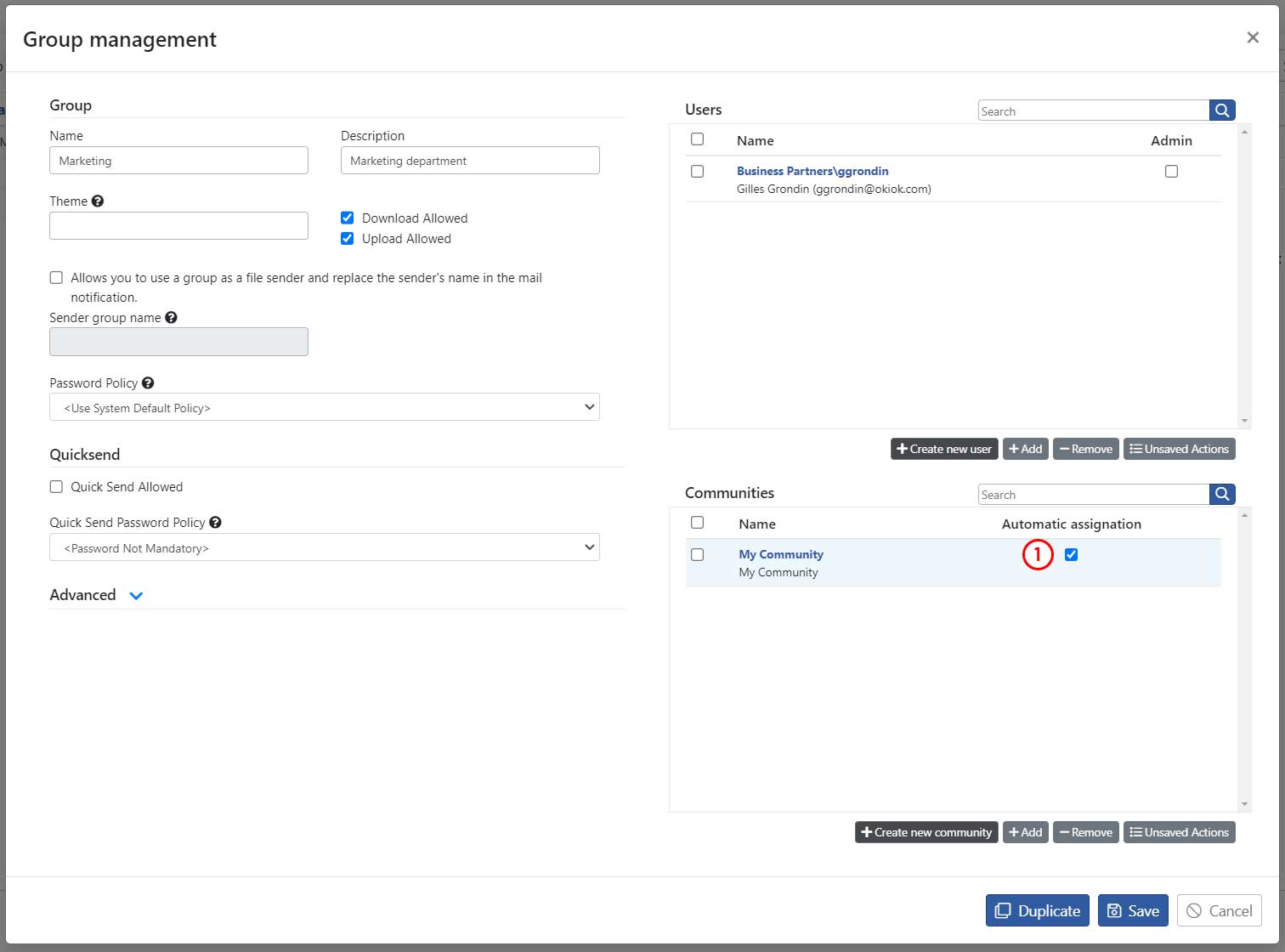

Automatically assign users to communities

You have the option to configure a community within a user group to be assigned automatically to users. This ensures that users who are part of the group will also be automatically assigned to the specified community. To enable this feature, follow the steps below:

Navigate to the list of communities in the user group settings.
Locate the desired community that you want to link for automatic assignment.
Check the Automatic Assignation option next to the community you wish to link.
Click on Save

Once this configuration is in place, any users assigned to the user group will be automatically assigned to the selected community. It's important to note that users can be assigned to a group from various panels and processes, and in all cases, the automatic assignment will be applied.

Note

Please be aware that users assigned to a community through the automatic assignment functionality cannot be manually unassigned from the community. For example, within the community configuration panel, you will not have the option to remove users who were automatically assigned. Similarly, in the user configuration panel, you cannot remove the assignment to the community.

Manage Extensions available to a group.

Refer to Assign Extension for more details on managing extensions.

Remove one or more groups

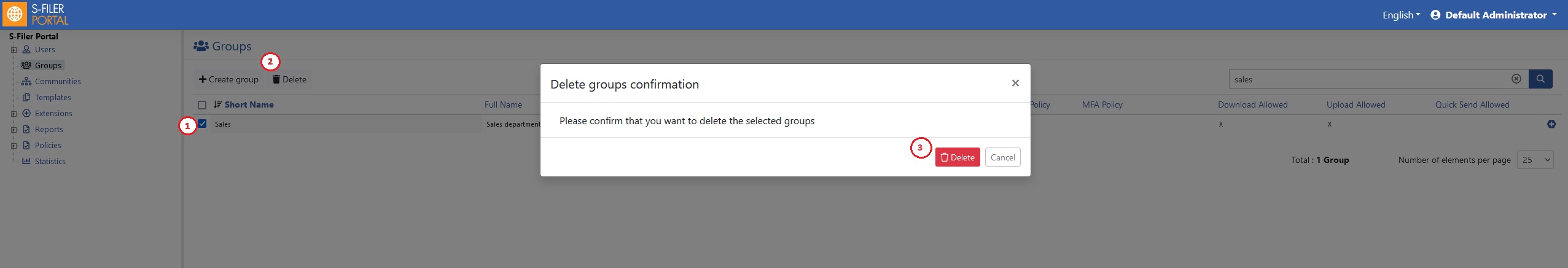

Simply select one or more groups and click the Delete button.

Select the group or groups you want to remove
Click on Delete
Click on OK to confirm the delete

Administering a Community

S-Filer Portal organizes enterprise users into communities. What we call "communities" are cross-functional teams that exist outside the functional groups and divisions of your enterprise. These communities use S-Filer Portal to organize their resources according to their own preferences and their own ways of working. In this way, S-Filer Portal promotes information-sharing throughout the enterprise.

This section covers the following:

Community List
Add a Community
Change the properties of a community
Grant or revoke membership in a community
Understanding Email Notification
Generate Reports
Manage Community extension
Delete one or more communities

Community List

You can become a delegated administrator of any community to which you belong. You can be granted this right either by the S-Filer Portal administrator or by a delegated administrator of that community. If you are a community administrator, your communities page will display something like this:

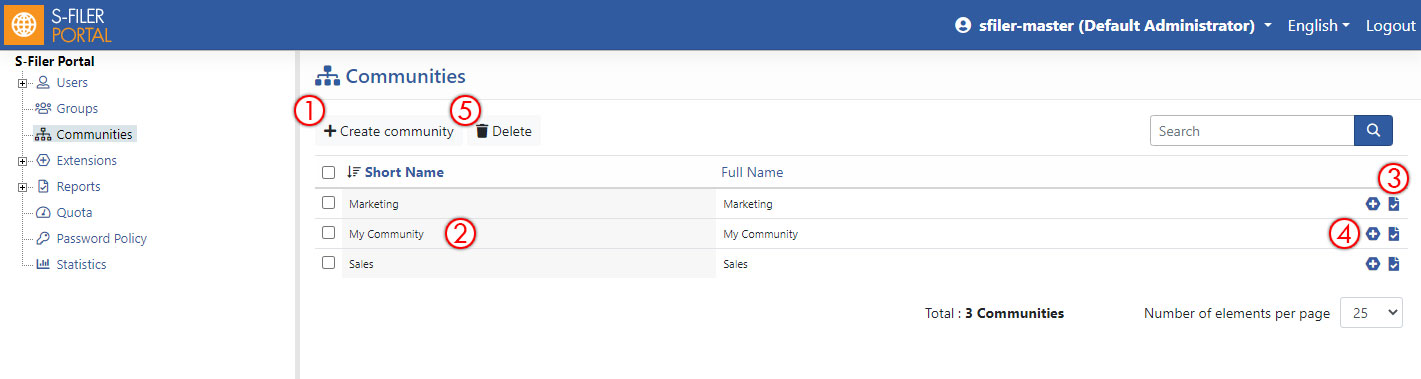

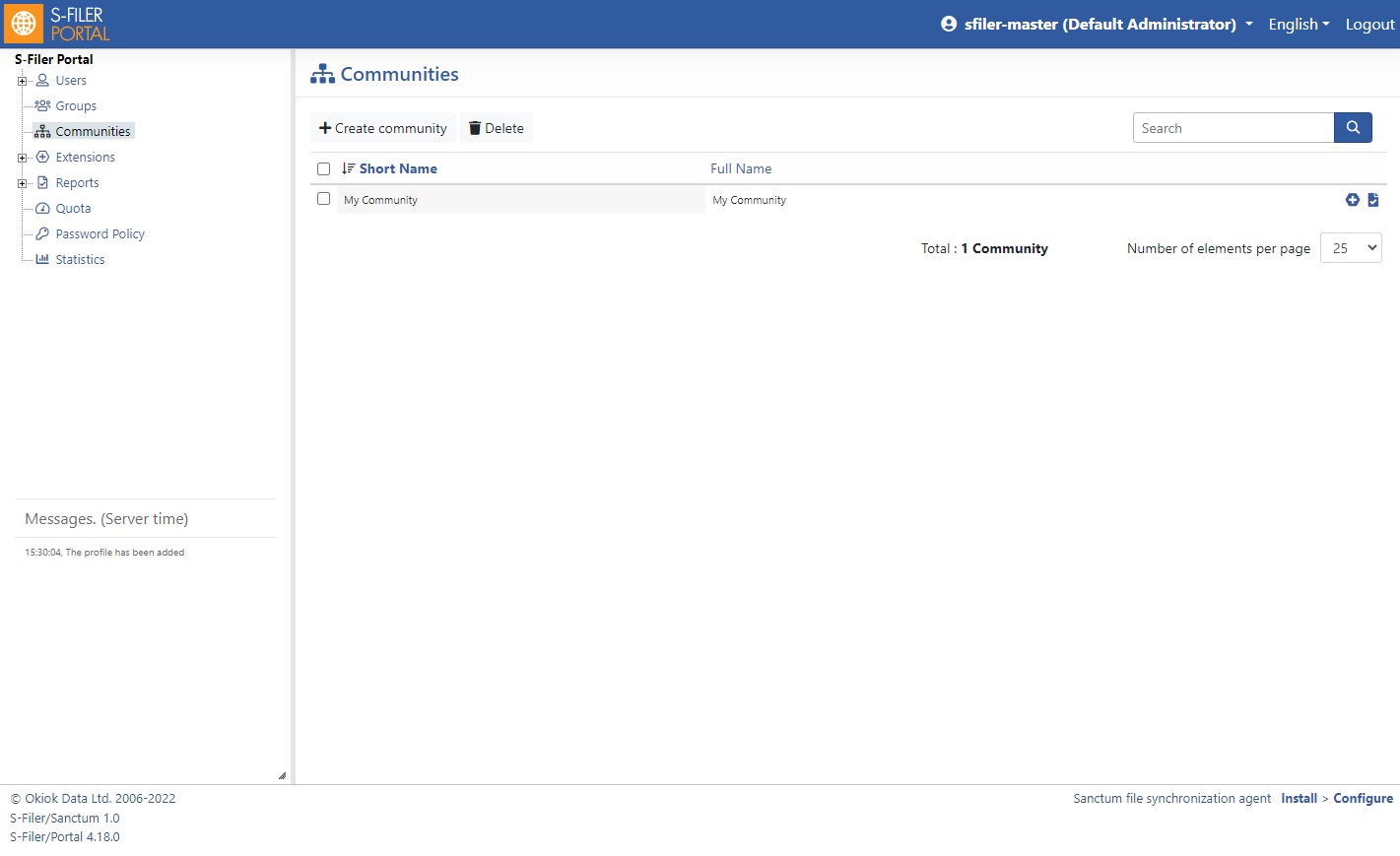

Click Communities Management to view the list of Communities that you administer:

As an administrator, there are six things that you can do:

Add a new community
Change the properties ("Community Details") of a community.
Generate reports about the file-transfer activities of the community.
Manage Extensions
Delete one or more communities

Add a Community

Name: Short and significant name for this community.
Description: Text that describes the community.
Security Profile: The type of encryption used for file transfers.
Compression Profile: The type of compression used for file transfers.
Transport Profile: The protocol used to transport data.
Email Notification: Notifications used by this community, see Understanding Email Notification
Transfer Option: If enabled, community members can only send files to the entire community. If disabled, community members can also send files to individual members.
Display Option: If disabled, community members who do not have download rights can nonetheless view the list of files.
Collaboration: This option if checked will keep different version of a file. To always replace the file, leave this option box unchecked. The Allow synchronization with client computers option, if enabled will permit files from this community to be synchronized on member's computers using the Sanctum client.
Quotas: The Quota field will restrict the total amount of megabytes allowed for the community.
Maximum file size: will restrict the size in megabytes that a user is allowed to upload the community. If the quota is attained the user will receive an email informing them that they have exceeded the quota for the community.
Default time to live: Controls the default time to live period for uploads to this community. Once this period or number of download has been reached, the file will be automatically deleted. The default time to live is now displayed on the community Manager page. This information is useful because if the application admin has permitted
- Days : The number of days to retain a file
- Hours : The number of hours to retain a file
- Maximum download count : The maximum number of times a file can be downloaded

Change the properties of a community

To see the properties of a community, click on its name in the list of communities. The Community Details dialog box will open:

See preceding section, for a description of all community properties.

Grant or revoke membership in a community

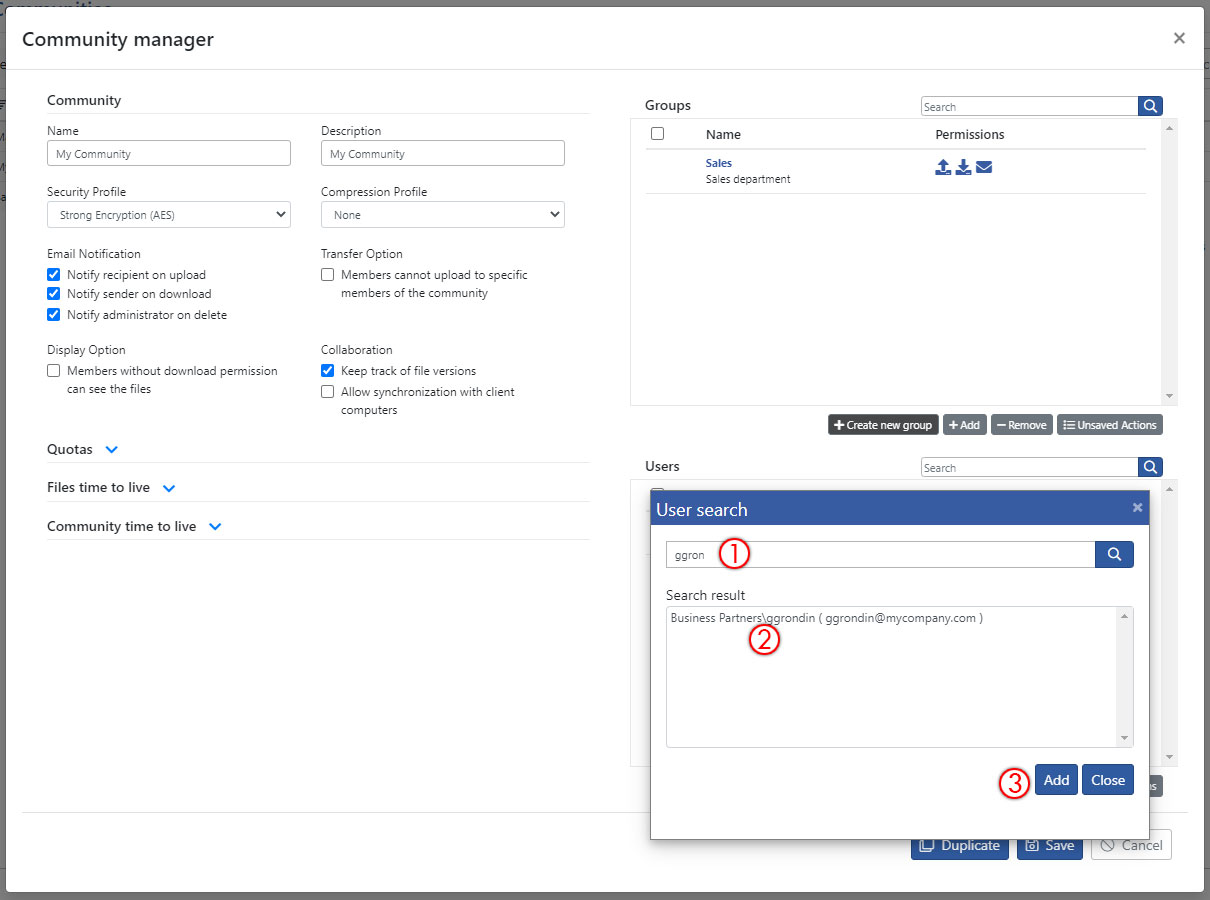

As a delegated administrator of a community, you can add S-Filer / Portal users to your community, and you can also remove them from your community.

Use the + button to select to add a new user to the community.

You can use the search users to select the user in our case jlarose.
In the search result we click on Jlarose to select it
Click on Add to add the user to the Marketing community.

Understanding Email Notification

For a community member to receive email notification the feature must be enabled both in the community profile and in the user profile.

Once email notification is enabled, S-Filer Portal sends email notifications according to the rules summarized in the table below.

Action	Target	Notification
Upload to	Community folder	All community members
	One or several community members	Those community members who received the file
	Your own My Documents folder	None
Download from	Community folder	The community member who uploaded the file
	My Documents folder, where another member uploaded the file	The community member who uploaded the file
	My Documents folder, where you uploaded the file	None
Delete from	Community folder (only a community admin can take this action)	All community members
	My Documents folder, where another member uploaded the file	None
	My Documents folder, where you None uploaded the file	None

Generate Reports

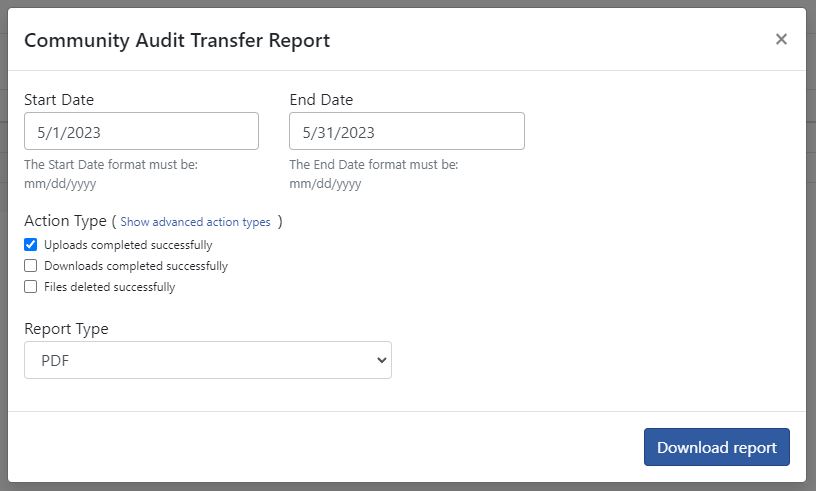

The Community History Report dialog box allows you to generate reports of the file-transfer activities of all community members. The reports show file-transfer actions, the date and time of the actions, and the names, size and properties of the transferred files.

To generate reports, click the Report icon (2.) in the Communities dialog box. The Community History Report dialog box will open:

Field	Description
Start Date	The first date that will be included in the report. Default: the first day of the current month.
End Date	The last date that will be included in the report. Default: the last day of the current month.
Action Type	Select any of the following: Uploads completed successfully Downloads completed successfully Files deleted successfully
Report Type	Two report formats are available: PDF CSV (comma-separated variable). This format can be imported into Microsoft Excel and other programs.

Manage Community extension

Refer to Assign extension.

Delete one or more communities

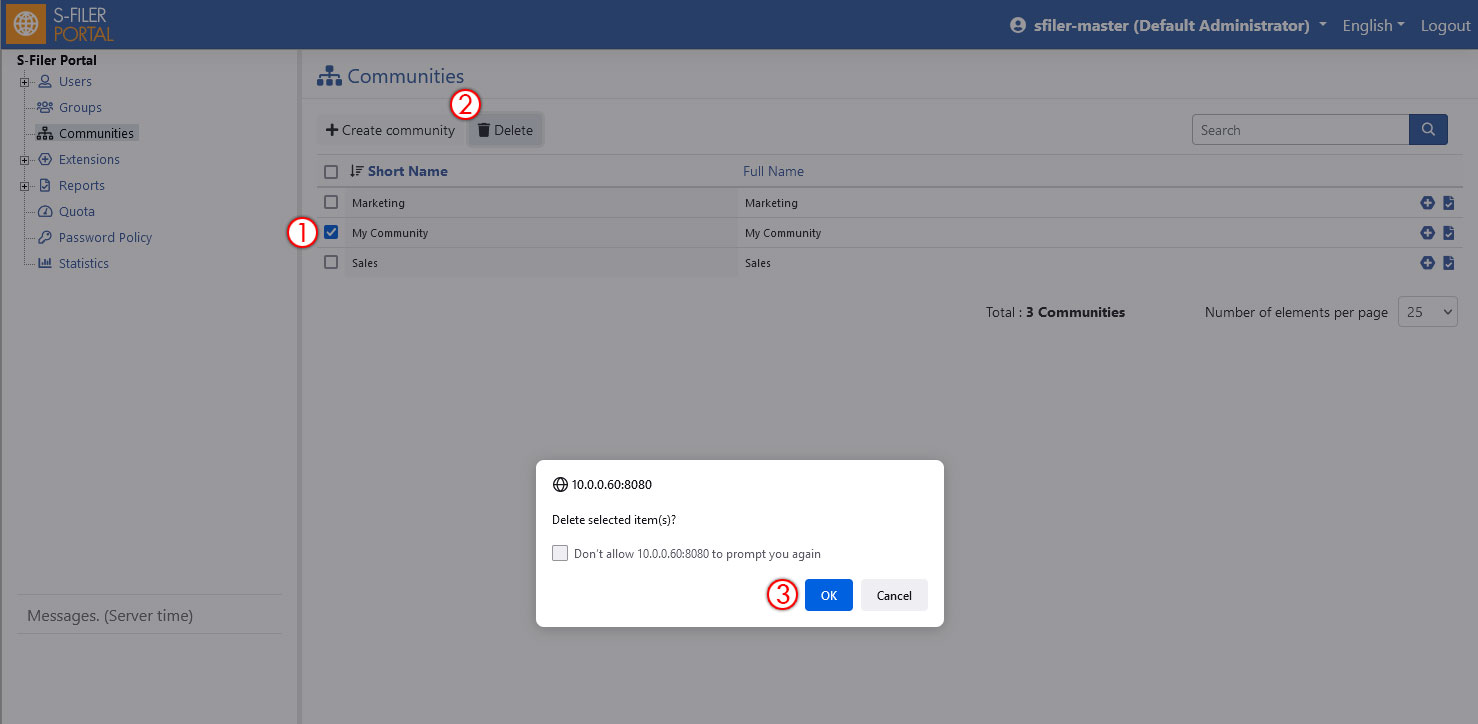

You can delete communities by simply selecting one or more community and clicking the delete button. Note, this also deletes all parameter and data files for this community.

Select the community or communities you want to remove
Click on Delete
Click on OK to confirm the delete

Administering Audit Trails

S-Filer Portal logs all activities as configured by administrators. Several Audit trail options are available.

Configure Audit Events
Export Audit Events

Configure Audit Events

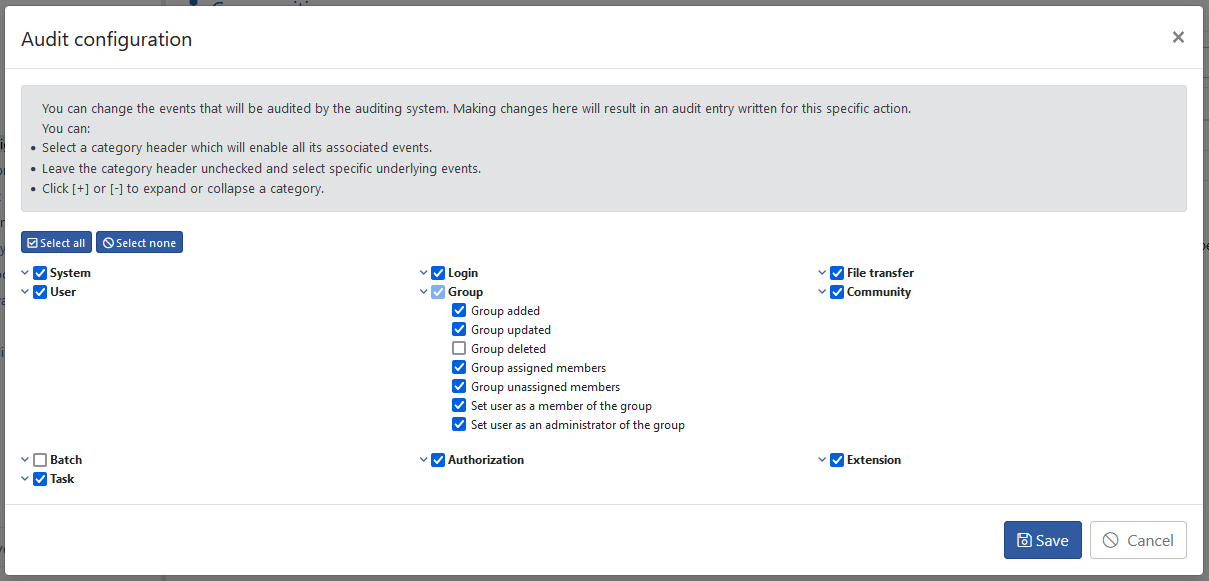

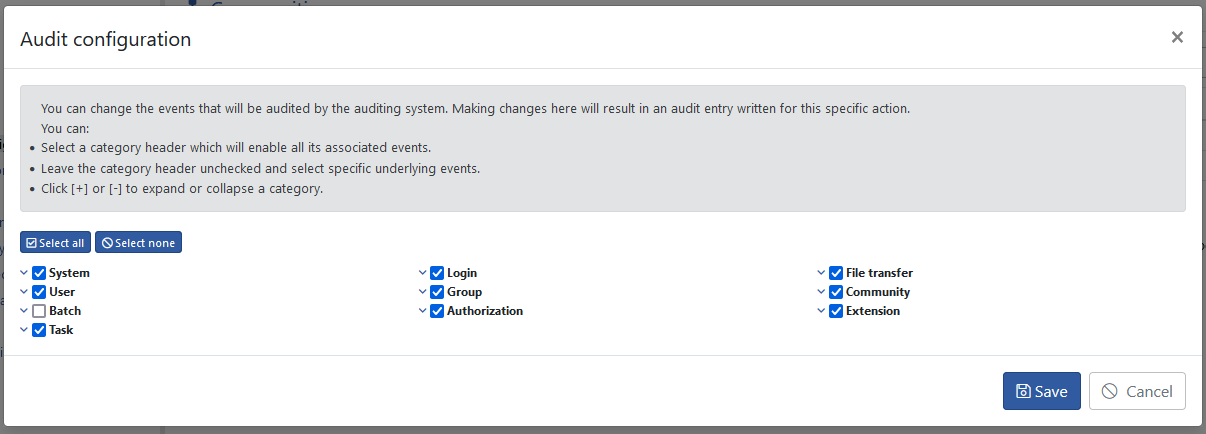

Click « Audit configuration » in the left menu, this will bring the following screen.

The different types of events are grouped by category. For example, the category "File Transfer" includes "File upload" "File download", "File destroyed ". To access the events in a category, simply click on the "+" symbol. Conversely, to close the class, you must click on the symbol "-". If the category is open, you can select or not each type. If you click on the category checkbox, this selects or deselects all events in the category.

The category checkbox can show 3 states depending on whether all items are selected, only some are selected or none are, as shown in the screen below.

Press "Save" to apply all changes. It should be noted that saving the settings applies instantly, de-selected events will no longer be traced.

Export Audit Events

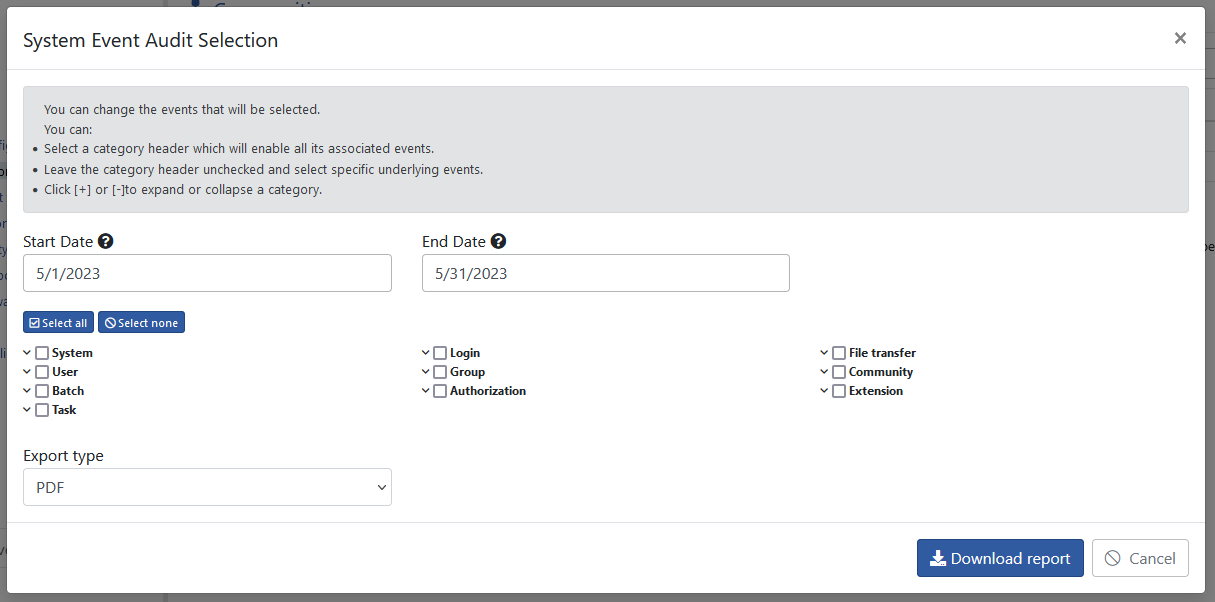

To export audit events, click Audit Report. The following screen will appear and you can select which event types or dates you want to export:

This screen is similar to the setup screen described above for the selection of the types of events.

Note that you can select to event types that may not be selected for being audited.

As with other reports S-Filer Portal, recordings can be exported as a printable PDF file or as a CSV file to be imported and reprocessed in a spreadsheet (Excel or OpenOffice Calc).

Administering Extensions

Extensions are optional. The configurator must enable this option in order to see this object

View Installed Extensions
Add an extension
Modify extension properties
Remove one or more extensions
Extension Usage
Assign extension
Modify extension

View Installed Extensions

Select Extension and click on Add Extension to get a list of current extensions available.

As a Master Administrator you can:

Add an extension
Modify an extension parameter
Remove an extension

The four letters (A G C U) on the right refer to the extension's execution zone.

A = Application
G = User Group
C = Community
U = User

In the screen shown above, we see that the extension called "ICAP Filter" can be used at the community level.

As for the order of execution, the events assigned at the application level will be executed first followed by events assigned to the user groups, those assigned on communities. Events specific to a user will be executed last.

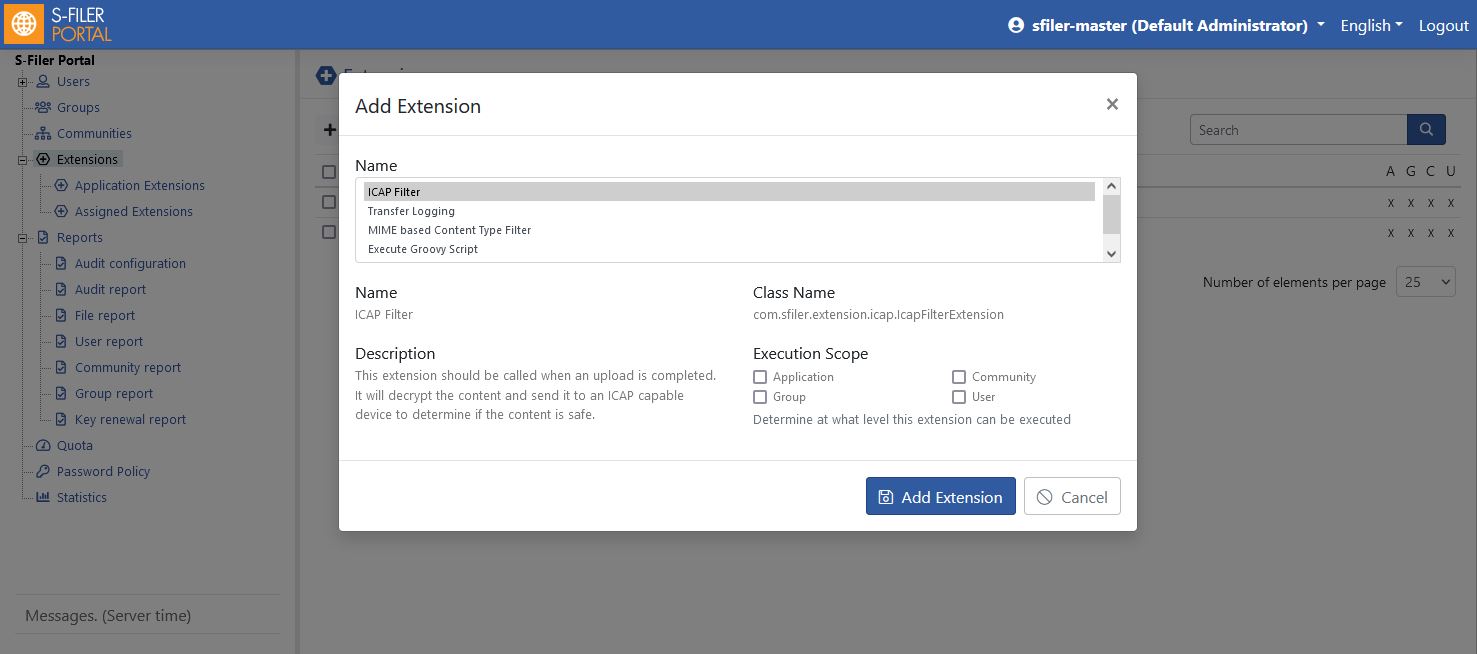

Add an extension

In order to add an extension, it must be visible by the S-Filer Portal console. Refer to Custom modules (extensions to learn how to create an extension and make it available to S-Filer Portal.

When you select an extension in the list, one sees its name, description and the java class. You must then select from which object this extension can be launched.

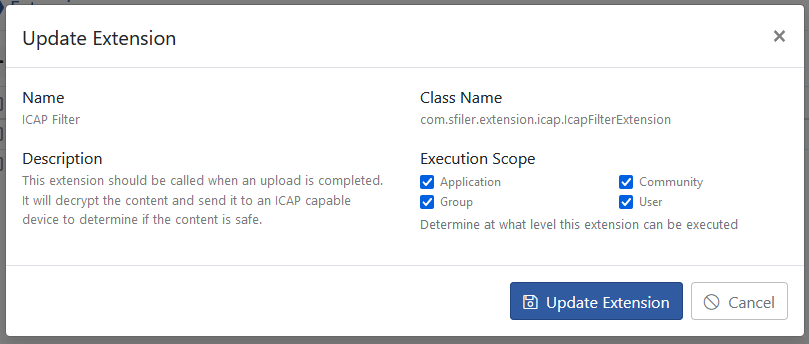

Modify extension properties

You can re-configure from which object an extension is available.

Note: If you remove an extension from one object, all references to this extension will be removed from the object.

Remove one or more extensions

To remove an extension, simply select the checkbox and press Delete.

Extension Usage

The previous section showed how to assign an extension to an object (Application, User Group, Community and User). This section explains how to use these extensions in each of these objects.

You have noticed that the 3 screens displaying the list of users, user groups and the list of communities offer the option to click on the icon for each of the components of this list: This icon allows you to manage the extensions assigned to the objects from that particular list. You will therefore understand that you can assign an extension to a group of users, a community and even to a specific user. When you click this button, a window similar to this one will be presented:

From this screen, one can see that 2 extensions are available at the application level. Both are active.

The following actions are available:

Assign an extension
Modify an extension
Apply a Filter on the list
Remove an extension from this object.

Assign extension

Figure 34 -- Assign an Extension

Available Extension: Lists all extensions available
Active: Active or Not
Processing order: the default value of 100 is fine if you have only one extension. If you have several extensions you may need to modify the processing order for them to execute in the correct order.
Execution Events: Events for which the extension will be invoked.

Modify extension

You can edit the following fields:

Active: Active or Not
Processing order: the default value of 100 is fine if you have only one extension. If you have several extensions you may need to modify the processing order for them to execute in the correct order.
Execution Events: Events for which the extension will be invoked.

Apply a filter on the list

Applying a filter is very useful to determine which extension will be invoked on a specific event. From this screen, one can also see in what order these extension will be invoked.

Remove an extension from an objet

To remove an extension from an object, simply select the checkbox and press Delete.

Custom Modules (Extensions)

S-Filer Portal lets you customize the system to meet your needs. Three types of modules can be used, each is presented in the following pages.

Extensions
WebServices
Administrative command line interface (CLI)

Extensions

Extensions are modules programmed in Java for yourself or a third party who may be assigned to certain events in the application. When these events occur, the code will be executed. The list of events depends on whether you place your extension on the entire application on a user group on a community or a particular user.

To build extensions, you must have a fairly good knowledge of Java programming language and you need a development environment like Eclipse.

Programming principle of an extension:

To create an extension you must include in the classpath of your development environment the following .jar files, found in the lib directory on the server S-Filer Portal:

sfiler-model.jar
sfiler-extension.jar

There are 2 important rules: Your extension package name must start with « com.sfiler.extension. » and your class must be a sub-class of « com.okiok.sfiler.extension.v2.Extension ». See example below:

java

package com.sfiler.extension.sample;

import java.util.Map;
import com.okiok.sfiler.commons.model.ExtensionEvent;
import com.okiok.sfiler.commons.model.db.SFilerUser;
import com.okiok.sfiler.extension.v2.Extension;
import com.okiok.sfiler.extension.v2.ExtensionException;

public class SampleExtension extends Extension {
    /**
     * This method is invoked when an error is encountered and returns a
     * Boolean value indicating if the following extensions should be executed.
     * If true is returned, all following extension will not be executed.
     * @param event The event that triggered the extension
     * @param currentUser The user that triggered the event
     * @param parameters The parameters for the event
     * @param error The error that occurred during execution of extensions
     * @return True if processing should be stopped without executing other extensions and the file deleted
     * @throws ExtensionException To report en error while processing the event
     */
    @Override
    public boolean customizeError(ExtensionEvent event, SFilerUser currentUser, Map<String, Object> parameters, Throwable error) throws ExtensionException {
        return false;
    }

    /**
     * This method
     * @param event The event that triggered the extension
     * @param currentUser The user that triggered the event
     * @param parameters The parameters for the event
     * @throws ExtensionException To report en error while processing the event
     */
    public void execute(ExtensionEvent event, SFilerUser currentUser, Map<String, Object> parameters) throws ExtensionException {
        System.out.println(getDescription());
    }

    /**
     * Returns the description of the extension for display
     * @return The description of the extension
     */
    public String getDescription() {
        return "Sample Extension";
    }

    /**
     * Returns the name of the extension for display
     * @return The name of this extension
     */
    public String getName() {
        return "Sample Extension Description";
    }
}

WebServices

S-Filer Portal offers a web service API that enables you to administer the system without using the web interface. The webservice layer is invisible using this API, you call the methods without worrying about the communication layer. The API is in the file Sfiler-wsclient.jar

Configuration

To use the web service API, you must have an administrator account on the server and you must know the address of the S-Filer Portal web services server. If for example your S-Filer Portal server is installed on a machine called "acme" then the address will probably look like this:

http(s)://acme:8088/sfiler/services/SFilerWS

The JAR files required to use the web server API are:

ws-client-<version>.jar
ws-api-<version>.jar
commons-<version>.jar
model-<version>.jar
axis-1.4.jar
jaxrpc-api-1.1.jar
axis-wsdl4j-1.5.1.jar
commons-discovery-0.4.jar

Example

In order to be able to call the API admin methods, you must have an authentication token. You can obtain this token by calling the « login » method. See example below.

java

public void testWS() throws Exception{

    SFilerWSClient client = new SFilerWSClient("http://acme:8088/sfiler/services/SFilerWS");

	String authToken = client.login(1, "sfiler-master", "sfiler");

	User toAdd = new User();
	toAdd.setName("demo");
	toAdd.setDescription("Demo User");
	toAdd.setEmail("demo@acme.com");
	toAdd.setPassword("demodemo");
	Integer userId = client.addUser(authToken, toAdd);
}

Administrative command line interface (CLI)

A new program was added to the S-Filer Portal distribution to allow administrators to perform administrative tasks on the solutions via command line. Before, these tasks could only be done by using the web services or the web interface. This new command line interface allows much easier scripting and automation in contexts where web services were hard to use.

Running the administrative command line interface on windows

You need to execute cli-admin.jar which should be located under the installation folder of the admin cli. It must be followed by arguments as presented in the help by executing it this way:

shell

> sfiler-admin.exe --h

Running the administrative command line interface on linux

You need to execute sfiler-admin.jar which should be located under the installation folder of the admin cli. It must be followed by arguments as presented in the help by executing it this way:

shell

> java --jar cli-admin.jar -h

List of error codes

Name	Code	Description
FILE_NOT_FOUND	500	The specified file does not exist (download, delete, etc.)
FILE_CORRUPTED_OR_LOCKED	501	When attempting to download a file that hasn't been completely uploaded or processed by extensions
FILE_EXPIRED	502	The specified file has exceeded its time to live
COMMUNITY_NOT_FOUND	510	The specified community doesn't exist
TICKET_NOT_FOUND	511	The internal reference to the file (ticket) cannot be found, usually when working a file that is being deleted
BASE_NODE_IS_NOT_FOLDER	512	Trying to list or upload files in a file instead of a folder
MOVE_DESTINATION_INVALID	513	When moving a file to a file instead of a folder, or to a nested folder or a folder in another community
MOVE_SOURCE_INVALID	514	Attempting to move a community or inbox directly instead of a subfolder or file
MOVE_DESTINATION_NAME_ALREADY_EXISTS	515	There is already a file or folder with the specified name that prevents the move from completing
RESUME_OFFSET_TOO_LARGE	516	Attempting to resume a file upload past the received portion of the file
COMMUNITY_NOT_MANAGED	517	The specified community is not a share (cannot invite people to share)
TICKET_NOT_ANONYMOUS	518	Attempting to download a file using the anonymous functionality, but the file wasn't uploaded as an anonymous file
SYSTEM_LICENSE_INVALID	700	The license is invalid
AUTHENTICATION_UNKNOWN	1000	An unexpected error occurred during authentication
AUTHENTICATION_PASSWORD_MISMATCH	1001	The password sent was wrong
AUTHENTICATION_PASSWORD_EXPIRED	1002	The password is expired, the user needs to change it
AUTHENTICATION_ACCOUNT_LOCKED	1003	The account is locked
AUTHENTICATION_ACCOUNT_EXPIRED	1004	The account is expired
AUTHENTICATION_USERGROUP_IP_VALIDATION _FAILED	1005	The account attempted to authenticate from an IP that is not allowed
AUTHENTICATION_ACCOUNT_NOT_FOUND	1006	The specified username wasn't found
AUTHENTICATION_DOMAIN_NOT_FOUND	1007	The specified authentication domain wasn't found
AUTHENTICATION_AUTO_ENROLLMENT	1008	The account was authenticated successfully, but the user doesn't exist yet in S-Filer, so he needs to auto-enroll
AUTHENTICATION_ACCOUNT_TEMPO_LOCKED	1009	The account was temporarily locked due to too many wrong password tries
AUTHENTICATION_OK_BUT_LICENCE_NOT_ACCEPT	1010	The account was authenticated successfully, but the user has not accepted the license (terms of use) yet
AUTHENTICATION_OK_BUT_ACKNOLEDGMENT _NEEDED	1011	The account was authenticated successfully, but he needs to acknowledge he has read the notice
AUTHENTICATION_ACCOUNT_INACTIVE	1012	The account is not active anymore, this indicates that an adopted account is not present in the original source anymore
AUTHENTICATION_AMBIGUOUS	1013	The auto-detect option for the domain detected multiple possible accounts
AUTHENTICATION_SSO_NOT_KERBEROS	1014	The SSO token sent by the browser for AD SSO is not a Kerberos token, it is probably an NTLM token
ROAMING_DOWNLOAD_FAILED	2001	Cannot recover the keys necessary to devrypt the desired file
ROAMING_UPLOAD_FAILED	2002	Cannot recover the community or user keys necessary to encrypt the file
TOKEN_INVALID	3000	The authentication token sent is invalid (cannot be parsed)
TOKEN_EXPIRED	3001	The authentication token sent is expired
TOKEN_NOT_YET_VALID	3002	The authentication token sent isn't valid yet
TOKEN_INVALID_SIGNATURE	3003	The signature on the authentication token cannot be verified
INVALID_REMOTE_IP	3004	The remote IP specified in the authentication token doesn't match the remote IP from which the request was received
UNAUTHORIZED	4000	The user is not authorized to perform the action
CANNOT_REMOVE_MANAGED_GROUP_ FROM_MANAGED_COMMUNITY	4001	Shares have an associated group that cannot be removed from the community (share)
PERSISTENCE_UNKNOWN	5000	Unexpected internal error while storing data in the datqabase
PERSISTENCE_ALREADY_EXIST	5001	Attempting to create a (user, group, community, file, etc.) with a name that already exists
MAIL_ALREADY_EXIST	5002	Unused anymore
MAIL_INVALID_NOT_USED_BY_ANY_USER	5003	Unused anymore
MAIL_USED_BY_MANY_USERS	5004	Unused anymore
MAIL_DOES_NOT_MATCH_USER	5005	The email address does not match the account when attempting to reset a password
PERSISTENCE_CONNECTION_LOST	5006	The connection to the database has been lost
PERSISTENCE_NON_UNIQUE_RESULT	5007	Multiple results were obtained when attempting to retrieve an object by name, this usually indicates database corruption
PERSISTENCE_NOT_FOUND	5008	An object (user, group, community, etc.) was not found
INVALID_NAME_FORMAT	5010	The specified name (user, group, community) contains invalid characters
INVALID_DOMAIN	5011	The authentication domain specified is invalid
INVALID_FIELD_LENGTH	5012	A submitted information (message, description, etc.) is too long to be held in the database
INVALID_MAIL_FORMAT	5013	An email address does not respect the expected form: user@example.com
INVALID_APPLICATION	5014	Internal error indicating that a component (gateway, GUI, etc.) has tried to retrieve a configuration using an invalid instance name
INVALID_APPLICATION_VERSION	5015	A component has a version that is incompatible with the server
INVALID_DATE_FORMAT	5020	A submitted date was not in the expected format
PERSISTENCE_DELETE_USER_HIMSELF	5016	An administrator attempted to delete his own account
NO_PERMISSION	5017	The user is not authorized to perform the action
INVALID_INPUT_FIELD	5018	A submitted input field is invalid
CANNOT_RENAME_EXTERNAL_USER	5019	An adopted user cannot be renamed since the name comes from the adoption source
EXTENSION_EVENT_NOT_AVAILABLE	5050	The specified extension event is incompatible with this extension
EXTENSION_MAPPING_UPDATE_ERROR	5051	An unexpected error occurred while saving the extension data for a specific event
PASSWORD_INVALID	6000	New password not specified when changing a password
PASSWORD_FORMAT_INVALID	6001	The new passord does not respect the password rules
PASSWORD_MISMATCH	6002	The password does not match the account password
PASSWORD_CHANGE_NOT_ALLOW_FOR_NOW	6003	The user attempted to change his password too quickly after changing it (there is a minimum amount of time to prevent users rolling over the password history)
PASSWORD_IN_HISTORY	6004	The given password is already in the password history
PASSWORD_NOT_SENT	6005	The anonymous file requires a password to be downloaded
PASSWORD_CHANGE_NOT_ALLOWED_IN_EXT _DOMAIN	6006	Cannot change the password of a user in an adopted domain (AD or LDAP)
INVALID_PUBLIC_KEY	7000	The specified public key (for SFTP public key login) is invalid
CONFIGURATION_UNKNOWN	8000	There is an unexpected error while retrieving the configuration of a component
CONFIGURATION_INVALID_PROCESS	8001	When starting a batch job, an invalid job identifier was specified
COMMUNICATION_FAILED	9000	Failed to connect to LDAP
UNKNOWN	10000	There was an unexpected error, this is the most generic error and does not provide any context
TRANSFER_UNKNOWN	20000	There was an unexpected error while uploading or downloading a file
TRANSFER_INVALID_EXPIRATION_DATE	20001	The specified expiration date of a file is invalid
TRANSFER_QUOTA_EXCEEDED	20002	A file quota was exceeded when uploading a file

Administration Concepts ​

This Manual ​

Starting in administrator mode ​

First Logon ​

Logging On ​

Understanding the Home Page ​

Administering your account ​

Updating your account details ​

Changing your password ​

Logout ​

S-Filer Portal objects ​

Users ​

User Privileges ​

User authentication: ​

User groups ​

Communities ​

Shares ​

Extensions ​

Administering Users ​

View existing users ​

Create Users ​

Modify Users ​

Manage extensions for a user ​

Delete Users ​

Administering a User group ​

View existing User groups ​

Add a user group ​

Change the properties of a user group ​

Manage Group Members ​

Automatically assign users to communities ​

Manage Extensions available to a group. ​

Remove one or more groups ​

Administering a Community ​

Community List ​

Add a Community ​

Change the properties of a community ​

Grant or revoke membership in a community ​

Understanding Email Notification ​

Generate Reports ​

Manage Community extension ​

Delete one or more communities ​

Administering Audit Trails ​

Configure Audit Events ​

Export Audit Events ​

Administering Extensions ​

View Installed Extensions ​

Add an extension ​

Modify extension properties ​

Remove one or more extensions ​

Extension Usage ​

Assign extension ​

Modify extension ​

Apply a filter on the list ​

Remove an extension from an objet ​

Custom Modules (Extensions) ​

Extensions ​

WebServices ​

Configuration ​

Example ​

Administrative command line interface (CLI) ​

Running the administrative command line interface on windows ​

Running the administrative command line interface on linux ​

List of error codes ​

Administration Concepts

This Manual

Starting in administrator mode

First Logon

Logging On

Understanding the Home Page

Administering your account

Updating your account details

Changing your password

Logout

S-Filer Portal objects

Users

User Privileges

User authentication:

User groups

Communities

Shares

Extensions

Administering Users

View existing users

Create Users

Modify Users

Manage extensions for a user

Delete Users

Administering a User group

View existing User groups

Add a user group

Change the properties of a user group

Manage Group Members

Automatically assign users to communities

Manage Extensions available to a group.

Remove one or more groups

Administering a Community

Community List

Add a Community

Change the properties of a community

Grant or revoke membership in a community

Understanding Email Notification

Generate Reports

Manage Community extension

Delete one or more communities

Administering Audit Trails

Configure Audit Events

Export Audit Events

Administering Extensions

View Installed Extensions

Add an extension

Modify extension properties

Remove one or more extensions

Extension Usage

Assign extension

Modify extension

Apply a filter on the list

Remove an extension from an objet

Custom Modules (Extensions)

Extensions

WebServices

Configuration

Example

Administrative command line interface (CLI)

Running the administrative command line interface on windows

Running the administrative command line interface on linux

List of error codes
